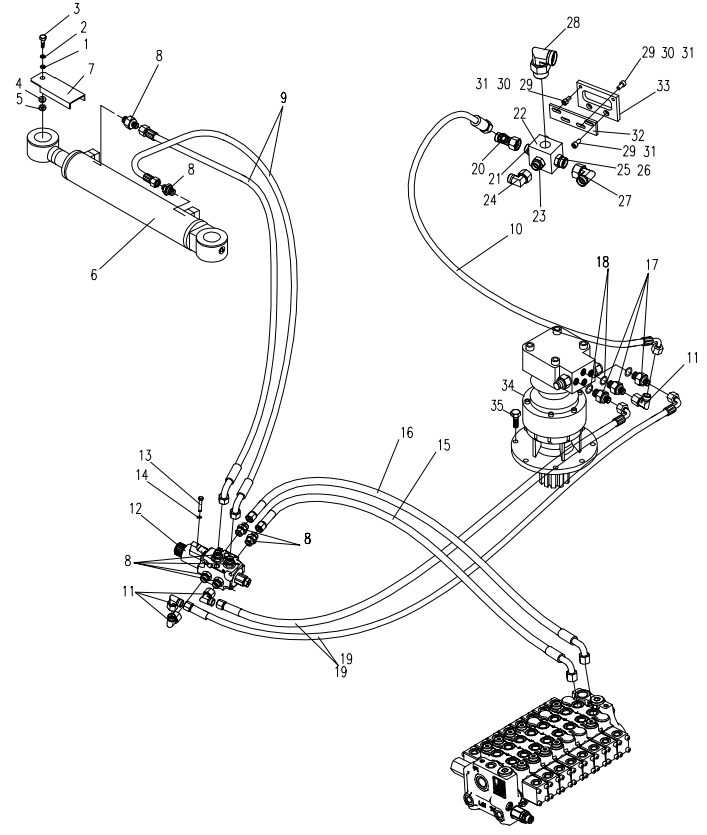

U35
Yuchai U35
1. 0404-008-05 Washer
2. 0401-008-05 Spring washer
3. 0206-000800025-65 Bolt
4. 820-0500012 spring seating
5. 820-0500011 spring
6. E35B1-0506000 cylinder assembly
7. 820-0532000 Prorective plate
8. 240-8500001 Bolt joint
9. 810N-0504000 Rubber pipe assembly
10. 860K-8505000 Rubber pipe assembly
11. 818B-0500063 Square joint
12. T0302-000001 valve
13. 0105-000600050-65 Bolt
14. 0401-006-05 Spring washer
15. 830E-0509000 Rubber pipe assembly
16. 240-9596000 Rubber pipe assembly
17. 820-0500041 Bolt joint
18. 0604-001380240-30 O-Ring
19. 810N-9505000A Rubber pipe assembly
20. 860C-8500002 Tee joint
21. 240-8500001 Bolt joint
22. 835-0503001 Bolt joint
23. 818B-0500061 Bolt joint
24. 830E-0500003 Square joint
25. 838B-0500002 Bolt joint
26. 0416-022-00 Combinatory washer
27. 830E-0501004 Square joint
28. 830H-0500002 Square joint
29. 0105-000800025-65 Bolt
30. 0404-008-05 Washer
31. 0401-008-05 Spring washer
32. E35B1-0500502 bracket
33. E35B1-0500501 bracket
34. 830D-0559000 Slewing reduction gear
35. 0206-001400040-94 Bolt
