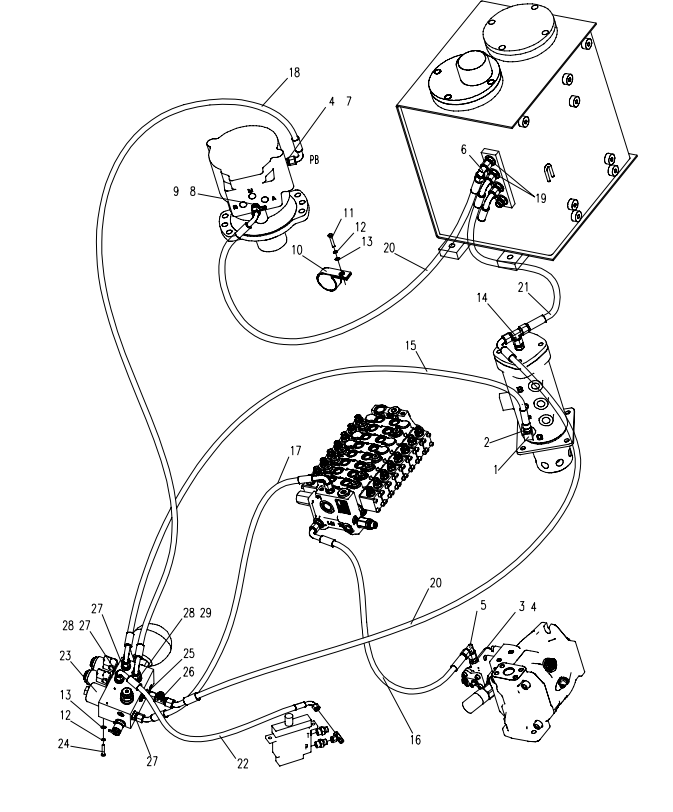

U35
Yuchai U35
1. 820-8500006 Bolt joint
2. 889-8501012 Bolt joint
3. 860A-8500003 Bolt joint
4. 0604-001080240-30 O ring
5. 810M-0500002 Square joint
6. 810M-0500003 Square joint
7. 820-7500009 Bolt joint
8. 820-8500013 Bolt joint
9. 0604-001380240-30 O ring
10. 839-1291009 Pipe clamp
11. 0206-001000020-65 Bolt
12. 0404-010-05 Washer
13. 0401-010-05 Spring washer
14. 820-7500007 Tee joint
15. 850-8534000 Rubber pipe assembly
16. E35B1-8500600 Rubber pipe assembly
17. E35B1-8500700 Rubber pipe assembly
18. 870-8544000 Rubber pipe assembly
19. 818B-0500012 Bolt joint
20. 830D-7506000 Rubber pipe assembly
21. 830-8509000 Rubber pipe assembly
22. 885-8521000 Rubber pipe assembly
23. E18B7-8504000 valve
24. 0206-001000035-65 Bolt
25. T0101-010007 Bolt joint
26. 850-8502000 Tee joint
27. 526A-9500001 Bolt joint
28. 810M-0500002 Square joint
29. 240-0500017 Bolt joint
