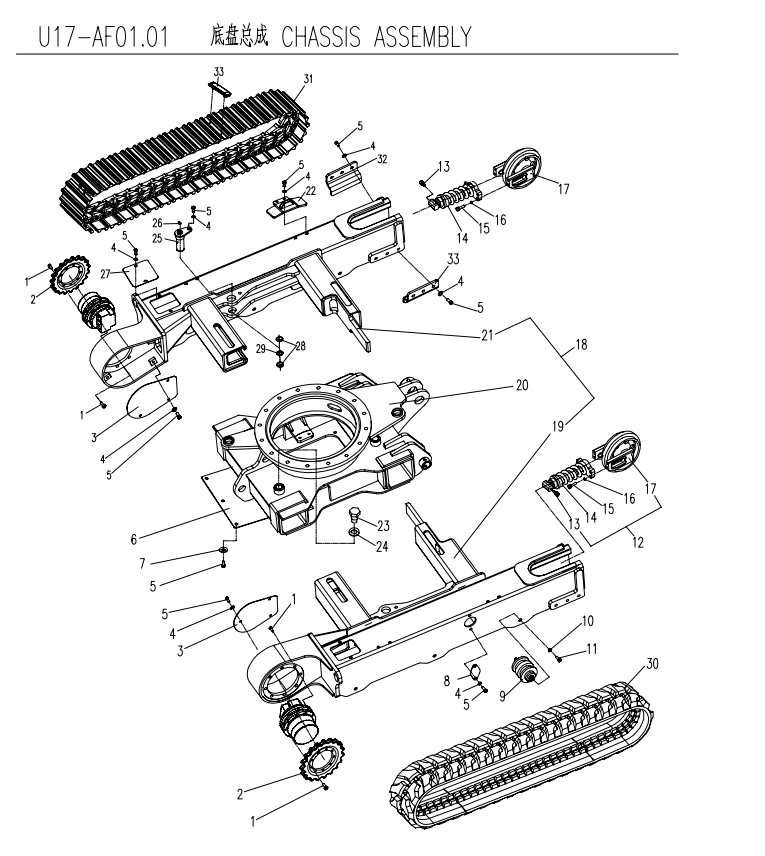

U17
Yuchai U17
1. 0105-001000030-84 Bolt
2. E18A1-0100001 Driving wheel
3. E18B3-0100007C motor shield
4. 0404-010-05 Washer
5. 0206-001000020-84 Bolt
6. E18B5-0100008 Cover Plat
7. 0403-010-05 Washer
8. E18B3-0100009 blind flange
9. E18A1-0104000 rollers assem
10. 0414-012-05 Spring washer
11. 0206-001200025-84 Bolt
12. E18A1-0102000 Tension spring
13. 822-0102210 Check valve assemb
14. E18A1-0102200 Tension spring assemb
15. 0206-001000050-65 Bolt
16. 0401-010-05 Spring washer
17. E18A1-0102100 Track idler assemb
18. U17A1-0110000 Chassis assembl
19. U17A1-0113000 Right crawler fr
20. U17A1-0112000 Base frame
21. U17A1-0111000 Left crawler fram
22. E18B3-0100030 Splint
23. U17A1-0100003 Shaft
24. 0404-024-05 Washer
25. 810N-0107000A Shaft
26. 0703-101-03 Grease cu
27. E18B5-0100003 Cover Plate
28. 810N-0100009A Orientation ring
29. 820-0402006 Dust-proof seal
30. E16A1-2101000 Rubber crawler
31. E15B1-2001000 Steel craw
32. 801P-0100002 Leading bogie
33. E18B1-2003100 Rubber pedrail
