U17

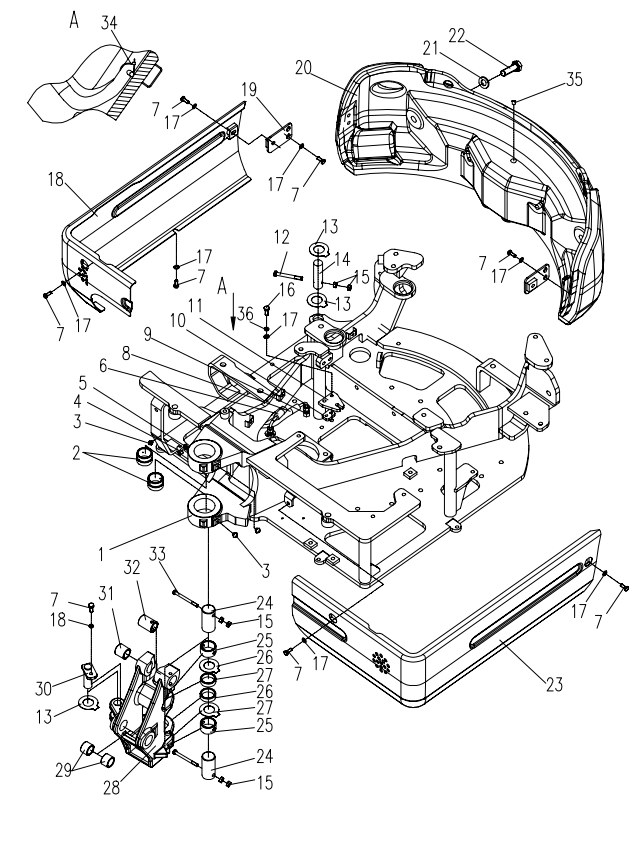

Yuchai U17
1. U17A1-0202000 Platform
2. E18B5-0200003 Bush Stel
3. 0701-101-03 Grease Cu
4. 820-0205001 Joint
5. 0310-101-45 Hex Jam Nut
6. U17A1-0203100 Connecting Pip
7. 0206-001000016-84 Hexagon Head Bolt
8. U17A1-0203200 Connecting Pipe
9. 820-0206001 Joint
10. E18B9-0200001 Washer
11. 810S-0200001 Closing plate
12. 0204-001000070-65 Hexagon Head Bolt
13. T0804-01002 Spacer
14. U17A1-0200001 Shaft Pin
15. 0306-100-45 Hex Jam Nut
16. 0206-001000040-84 Hexagon Head Bo
17. 0404-010-05 Washer
18. U17A1-0200030 Right-Munting cov
19. U17A1-0200020 Mounting Pla
20. U17A1-0200002A Counter Weigh
21. T0804-022014
22. 0204-001600060-94 Hexagon Head Bol
23. U17A1-0200040 Left-Munting cover
24. E18B5-0200004 Shaft Pi
25. E18B5-0201003 Bush Stel
26. T0804-01005 Spacer
27. E18B5-0201004 Bush Stel
28. E18B5-0201100 Steering Head
29. E18B5-0201001 Bush Stell
30. E18B1-0200050 Shaft Pi
31. E18B5-0401001 Bush Stel
32. E18B5-0201002 Bush Stell
33. 0204-001000125-65 Hexagon Head Bolt
34. T0416-060009 Bandage
35. 839A-8500015 Rubber cap
36. 0414-010-05 Spring wash
