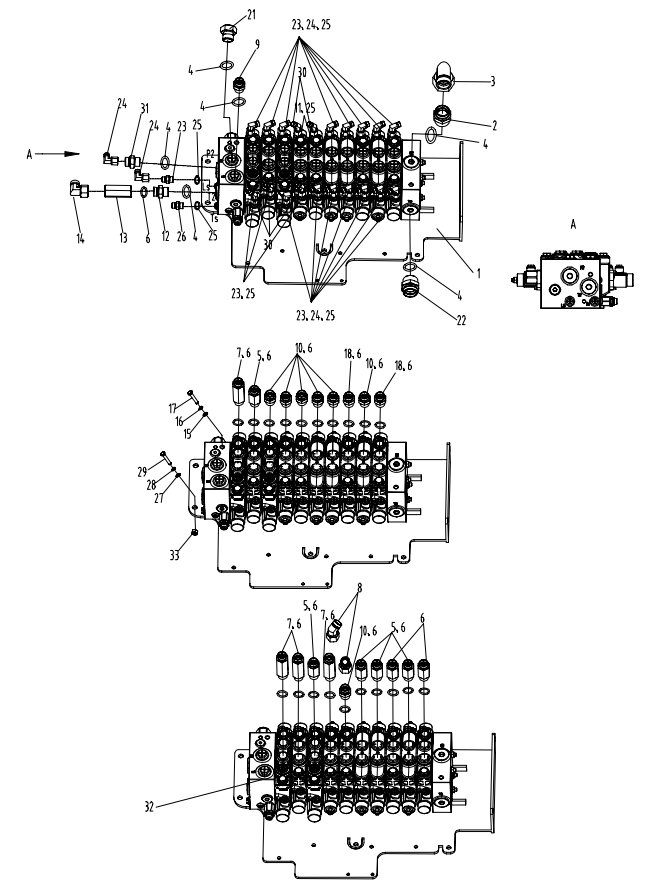

U60
Yuchai U60
1. U60A1-0500110 Plate
2. U60A1-0500104 Bolt joint
3. 856-0500009 Square joint
4. 0604-002370350-30 O seal ring
5. 850-0500003 Bolt joint
6. 0604-001780240-30 O seal ring
7. 850-0500004 Bolt joint
8. F35A1-9509204 Square joint
9. 820-0500026A Bolt joint
10. 850-0500005 Bolt joint
11. T0101-010067 Bolt joint
12. U60A1-0500102 Bolt joint
13. 839A-0501200A Valve
14. 890-8500003 Square joint
15. 0206-001000025-65 Bolt
16. 0401-010-05 Spring washer
17. 0404-010-05 Washer
18. 820-0500022A Bolt joint
19. 835-0500037 Bolt joint
20. E18B3-0500001 Joint
21. 870-0500008 Plug
22. U60A1-0500105 Bolt joint
23. 860A-8500003 Bolt joint
24. 810M-0500002 Square joint
25. 0604-001080240-30 O seal ring
26. 820-7500009 Bolt joint
27. 0206-000800016-65 Bolt
28. 0401-008-05 Spring washer
29. 0404-008-05 Washer
30. 613-8500001 Square joint
31. U60A1-0500103 Bolt join
32. U60A1-0501000 Hydraulic multiway valve
33. 0306-100-45 Nut
