U60

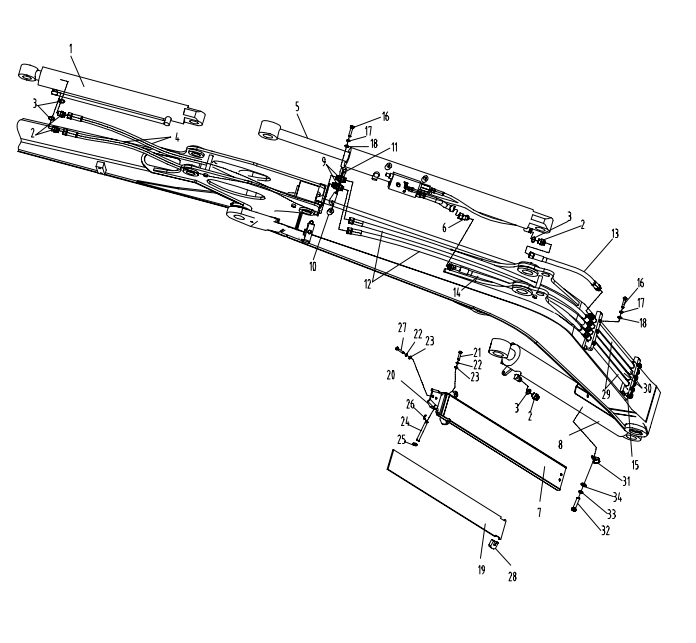

Yuchai U60
1. U60A1-9501000 Bucket cylinder
2. 820-0500034 Bolt joint
3. 0604-001780240-30 O ring seal ring
4. U60A1-9500020 Hose assembly
5. U60A1-9502000 Arm cylinder
6. F35A1-9509204 Toggle joint
7. U60A1-9500320 Plate
8. U60A1-9503000 Boom cylinder
9. 819-0513000 Bolt joint
10. U60A1-9500073 Steel jacket
11. U60A1-9500060 Yoke
12. U60A1-9500030 Hose assembly
13. U60A1-9500010 Hose assembly
14. U60A1-9500040 Hose assembly
15. U60A1-9500001 Tubing clip
16. 0206-001000050-65 Bolt
22. 0401-010-05 Spring washer
23. 0404-010-05 Washer
19. U60A1-9500330 Plate
20. U60A1-9500301 Connecting base
21. 0206-001000025-65 Bolt
24. U60A1-9500302 Cylindrical pin
25. 0404-012-05 Washer
26. 0501-020020-03 Split cotter
27. 0206-001000020-65 Bolt
28. E27A1-9501202 Sliding block
29. U60A1-9500200 Steel tube assembly
30. U60A1-9500100 Steel tube assembly
31. 853D-1285003 Tubing clip
32. 0206-000800016-65 Bolt
33. 0401-008-05 Spring washer
34. 0404-008-05 Washer
