Yuchai U60

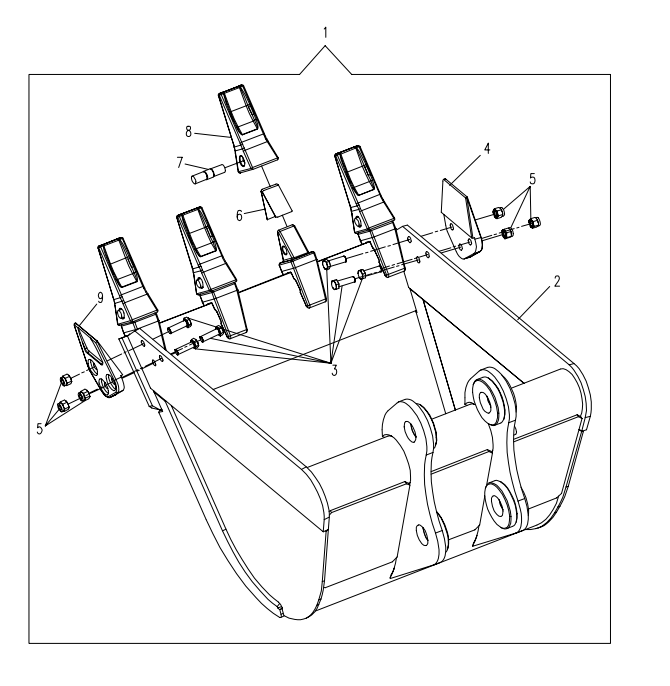

1. U60A1-0403000A Bucket
В корзину
-
+
2. U60A1-0403100A Bucket body
В корзину
-
+
3. 0206-001200040-84 Bolt
В корзину
-
+
4. 820-0413004 Right cutter
В корзину
-
+
5. 0303-120-43 Locknut
В корзину
-
+
6. 820-0415001 Rubber spacer
В корзину
-
+
7. 820-0413002 Pin spacer
В корзину
-
+
8. 820-0413001 Teeth sheath
В корзину
-
+
9. 820-0413005 Left cutter
В корзину
-
+
✕
