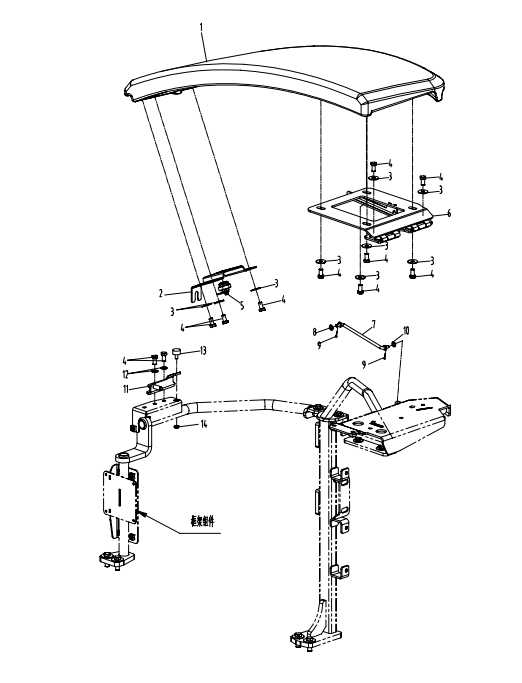

Yuchai U60
1. U60A1-1040001 Plate
В корзину
-
+
2. U60A1-1040002 Bent plate
В корзину
-
+
3. 0403-010-05 Washer
В корзину
-
+
4. 0206-001000020-84 Bolt
В корзину
-
+
5. U17A1-1030040 Lock
В корзину
-
+
6. U60A1-1040030 Hinge
В корзину
-
+
7. U60A1-1040050 Bracing piece
В корзину
-
+
8. 0404-008-05 Washer
В корзину
-
+
9. 0501-020012-05 Cotter pin
В корзину
-
+
10. 0403-008-05 Washer
В корзину
-
+
11. U60A1-1040040 Bent plate weldment
В корзину
-
+
12. 0404-010-05 Washer
В корзину
-
+
13. 818B-0608000 Cap of screw
В корзину
-
+
14. 0308-080-45 Nut
В корзину
-
+
✕
