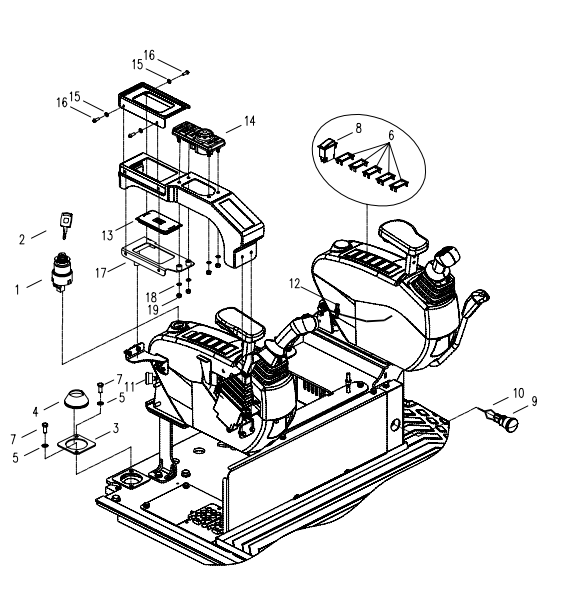

Yuchai U60
1. T0401-041001 Key switch
В корзину
-
+
2. T0401-041002 Key
В корзину
-
+
3. U60A1-1316001 Mounting Plate
В корзину
-
+
4. U60A1-1316002 Protection Cover
В корзину
-
+
5. 0404-008-05 Washer
В корзину
-
+
6. T0401-03303 Cover plate
В корзину
-
+
7. 0206-000800020-65 Bolt
В корзину
-
+
8. T0401-031001 Quick-changing Switch
В корзину
-
+
9. T0425-061005 Emergency Stop
В корзину
-
+
10. U60A1-1316040 Emergency Wire
В корзину
-
+
11. T0416-150001 Buzzer
В корзину
-
+
12. T0416-060008 Bandage
В корзину
-
+
13. U60A1-1316110 Wireless Charging Assmbly
В корзину
-
+
14. U60A1-1316010 Controler
В корзину
-
+
15. 0404-005-05 Washer
В корзину
-
+
16. 0110-000500020-65 Screw
В корзину
-
+
17. U60A1-1316120 Charger Plate
В корзину
-
+
18. 0404-006-05 Washer
В корзину
-
+
19. 0306-060-45 Nut
В корзину
-
+
✕
