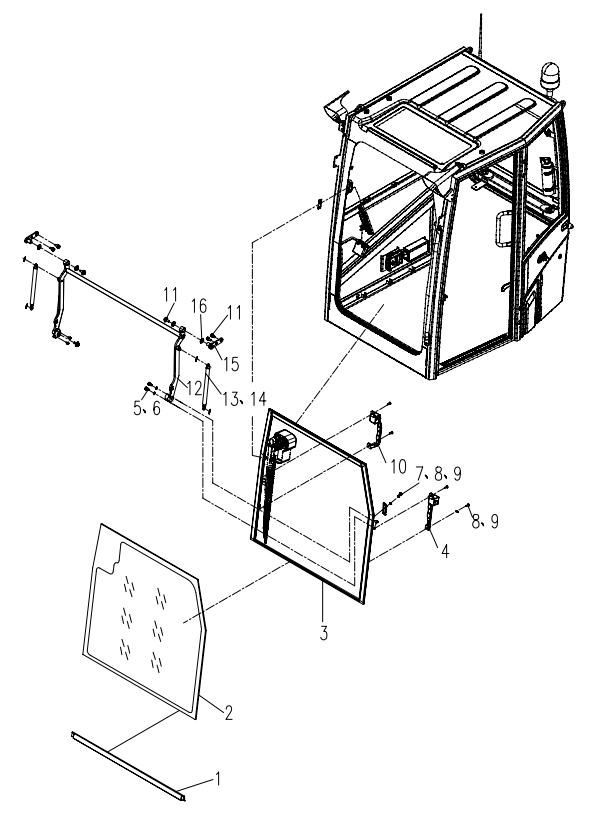

Yuchai U60
1. U60A1-0702001 Rubber cushion
В корзину
-
+
2. U60A1-0702002 Glass
В корзину
-
+
3. U60A1-0702100 Overturn window frame
В корзину
-
+
4. U27A3-0700600 Left handrail lock
В корзину
-
+
5. 0112-000500016-65 Bolt
В корзину
-
+
6. 0404-005-05 Washer
В корзину
-
+
7. U27A3-0702009 Locker
В корзину
-
+
8. 0105-000600016-65 Locker
В корзину
-
+
9. 0404-006-05 Washer
В корзину
-
+
10. U27A3-0700500 Right handrail lock
В корзину
-
+
11. 0112-000800016-65 Bolt
В корзину
-
+
12. U60A1-0702400 Connecting rod
В корзину
-
+
13. U60A1-0700014 Gas spring
В корзину
-
+
14. 0412-008-01 Circlip-for-shaft
В корзину
-
+
15. U60A1-0702003 Install board assembly
В корзину
-
+
16. U60A1-0702004 Washer
В корзину
-
+
✕
