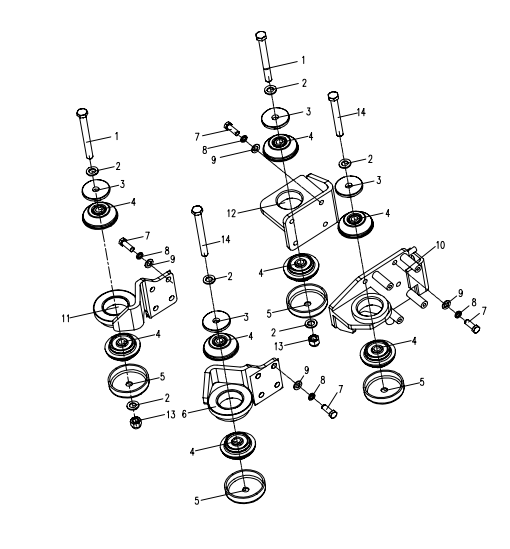

Yuchai U60
1. 0204-001600150-84 Bolt
В корзину
-
+
2. 0404-016-05 Washer
В корзину
-
+
3. 860-1207001 Washer
В корзину
-
+
4. 853D-1213100 Shock absorber
В корзину
-
+
5. 856C-1207001 Washer
В корзину
-
+
6. U60A1-1207300 Support
В корзину
-
+
7. 0210-001202035-84 Bolt
В корзину
-
+
8. 0401-012-05 Spring washer
В корзину
-
+
9. 0404-012-05 Washer
В корзину
-
+
10. U60A1-1207100 Support
В корзину
-
+
11. U60A1-1207400 Support
В корзину
-
+
12. U60A1-1207200 Support
В корзину
-
+
13. 0303-160-65 Nut
В корзину
-
+
14. 0204-001600130-84 Bolt
В корзину
-
+
✕
