U60

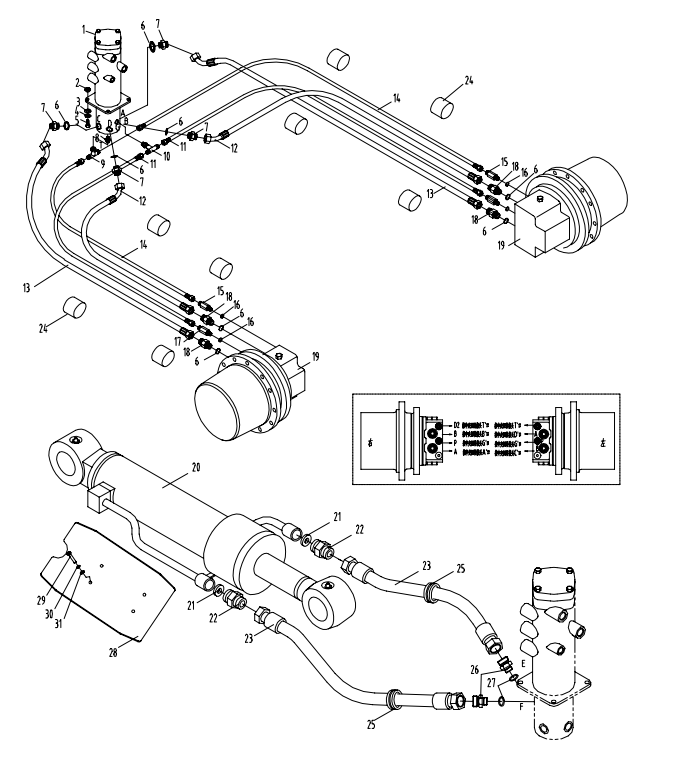

Yuchai U60
1. 850-0504000 Centre slewing joint
2. 0306-100-45 Nut
3. 0404-010-05 Washer
4. 0401-010-05 Spring washer
5. 0206-001000035-65 Bolt
6. 0604-001780240-30 O seal ring
7. 850-7500003 Bolt joint
8. 853K-7500001 Bolt joint
9. 870-7500003 Tee joint
10. 820-7500007 Tee joint
11. 835-8508000B Hose assembly
12. 850-7504000 Hose assembly
13. 828-0513000 Hose assembly
14. 801P-0532000 Hose assembly
15. 820-7500012 Bolt joint
16. 0604-001080240-30 O seal ring
17. 850-7500002 Bolt joint
18. 850-0500005 Bolt joint
19. 850-7508000 Traveling motor
20. U60A1-7502000 Oil cylinder
21. 0416-022-00 Combinatory washer
22. 820-0500023 Bolt joint
23. U60A1-7500020 Hose assembly
24. 820-7500006 Rubber casing
25. 850-7500001 Rubber casing
26. 820-0500041 Bolt joint
27. 0604-001380240-30 O seal ring
28. U60A1-7500001 Plate
29. 0206-000800020-65 Bolt
30. 0401-008-05 Spring washer
31. 0404-008-05 Washer
