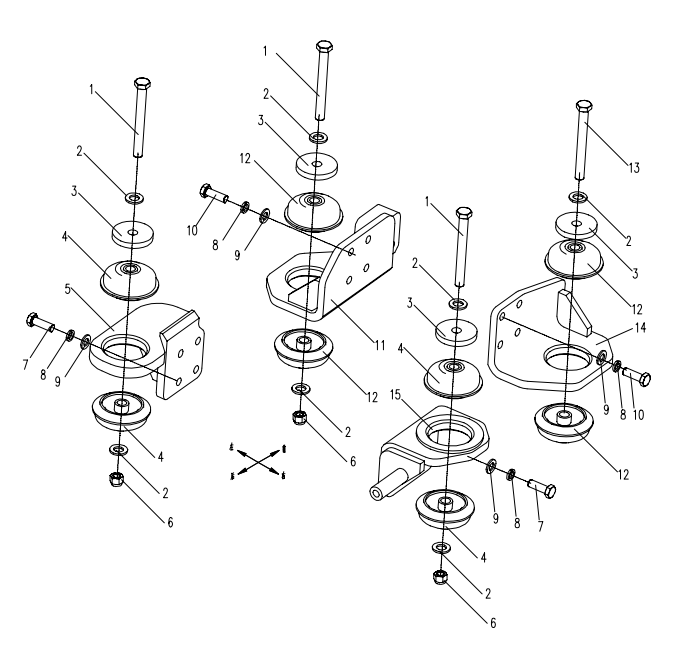

Yuchai U35
1. 0204-001200120-84 Bolt
В корзину
-
+
2. 0404-012-05 Washer
В корзину
-
+
3. 835A-1207001 Washer
В корзину
-
+
4. E35B1-1207002 Shock absorber
В корзину
-
+
5. E25A2-1207300 Rear support-LH
В корзину
-
+
6. 0303-120-45 Nut
В корзину
-
+
7. 0206-001000030-84 Bolt
В корзину
-
+
8. 0401-010-05 Spring washer
В корзину
-
+
9. 0404-010-05 Washer
В корзину
-
+
10. 0206-001000025-84 Bolt
В корзину
-
+
11. E35B1-1207100 Front support-LH
В корзину
-
+
12. E35B1-1207001 Shock absorber
В корзину
-
+
13. 0204-001200110-84 Bolt
В корзину
-
+
14. E35B1-1207200 Front support-RH
В корзину
-
+
15. E35B1-1207300 Rear support-RH
В корзину
-
+
✕
