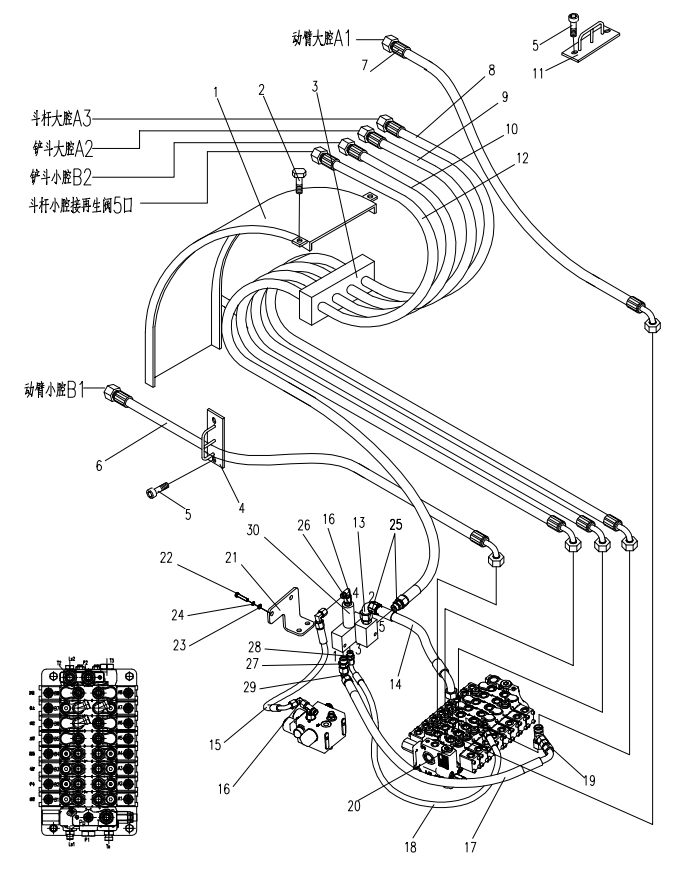

U35
Yuchai U35
1. 835-0500001
2. 0211-000600020-65 Bolt
3. 830E-0500059 Pipe clamp
4. 830-0509000 tubing bracket
5. 0211-000800016-65 Bolt
6. 828-0534000 Rubber pipe assembly
7. 835-6501700 Rubber pipe assembly
8. E35B1-0501200 Rubber pipe assembly
9. E35B1-0501300 Rubber pipe assembly
10. E35B1-0501400 Rubber pipe assembly
11. 835-0507200 bracket
12. E35B1-0501800 Rubber pipe assembly
13. 830E-0500003 Square joint
14. F35A1-9501300 Rubber pipe assembly
15. 839-8505000 Rubber pipe assembly
16. 810M-0500003 Square joint
17. 830D-0512000 Rubber pipe assembly
18. 839-8504200 Rubber pipe assembly
19. 505-9500004 Bolt joint
20. 870-8500003 Tee joint
21. E35B1-0501601 bracket
22. 0206-001000016-65 Bolt
23. 0404-010-05 Washer
24. 0401-008-05 Spring washer
25. 818B-0500061 Bolt joint
26. 853K-8500002 Bolt joint
27. 860P-8500001 Bolt joint
28. 240-0500017 Bolt joint
29. 818B-0500063 Square joint
30. E35B1-0501700 valve
