U35

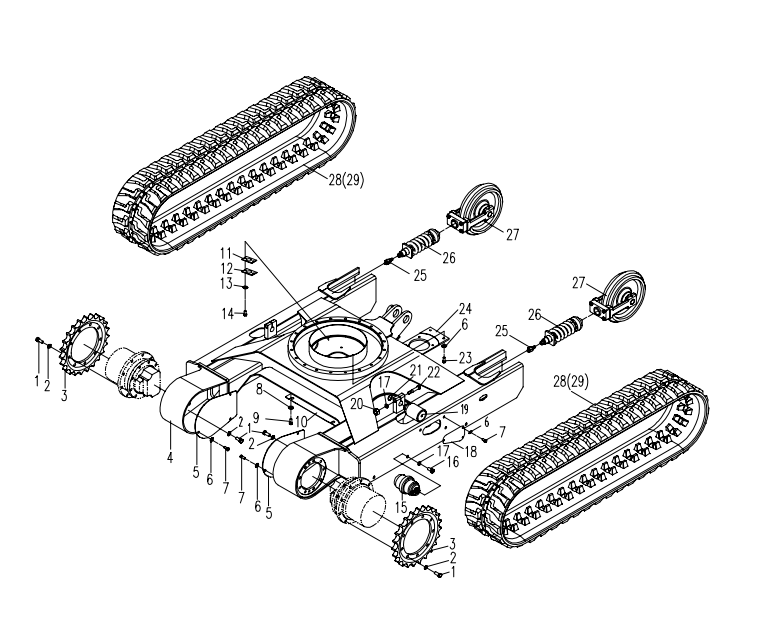

Yuchai U35
1. 0206-001200035-84 Bolt
2. 0414-012-05 Spring washer
3. 815-0100002 Driving wheel
4. 835-0101000A Chassis assembly
5. 820-0108001B Traveling motor cover plat
6. 0404-010-05 Washer
7. 0206-001000020-84 Bolt
8. 0404-012-05 Washer
9. 0206-001200025-84 Bolt
10. 820-0107001B Chassis cover plate
11. 825-0100002 Cover
12. 825-0100001 Cover
13. 0404-008-05 Washer
14. 0206-000800020-84 Bolt
15. 838A-0105000A Idler assembly
16. 0206-001400035-84 Bolt
17. 0401-014-05 Spring washer
18. 820-0100004 Side cover plate
19. 820-0103000 Carrier roller assembly
20. 0306-140-45 Nut
21. 0412-030-03 Closing ring
22. 0204-001400090-84 Bolt
23. 0206-001000030-84 Bolt
24. 828-0100002 Splint
25. 820-0102210A Check valve assembly
26. 820-0102200 Tension equipment
27. 820-0102100 Track idler assembly
28. E35B1-2102000 Rubber pedrail
29. 830D-2001000 Steel pedrail
