U35

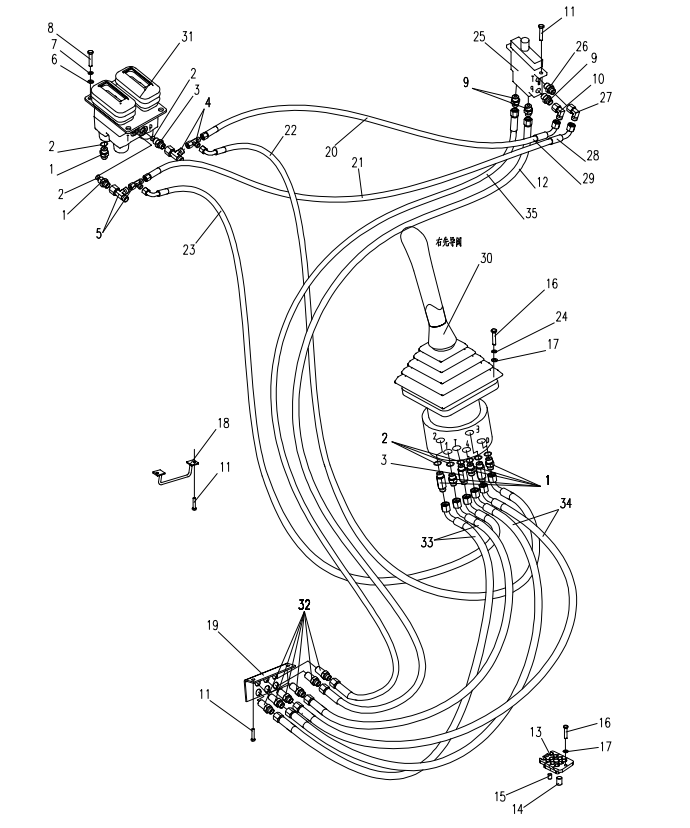

Yuchai U35
1. 860A-8500003 Bolt joint
2. 0604-001080240-30 O-Ring
3. 855-7500002 Bolt joint
4. 850-8502000 Tee joint
5. 870-8500003 Tee joint
6. 0404-010-05 Washer
7. 0401-010-05 Spring washer
8. 0206-001000025-65 bolt
9. 526A-9500001 Bolt joint
10. 810M-0500002 Square joint
11. 0211-000600020-65 Bolt
12. 526-8514000 Rubber pipe assembly
13. 839A-8500010 Pipe clamp
14. 839A-8500014 rubber plug
15. 839A-8500015 rubber plug
16. 0206-000600025-65 Bolt
17. 0404-006-05 Washer
18. 822-8507080 Pipe clamp
19. 822-8507001 board
20. 810-0508000 Rubber pipe assem
21. 883-9512000 Rubber pipe assembly
22. 855-8517000 Rubber pipe assembly
23. 860A-7508000 Rubber pipe assembly
24. 0401-006-05 Spring washer
25. T0301-11000 valve
26. T0101-010007 Bolt joint
27. 810M-0500003 Square joint
28. 850-8516000 Rubber pipe assembly
29. 835-8571000 Rubber pipe assembly
30. T0301-000002 valve
31. E60A3-8503000 valve
32. 892A-8503001 Bolt joint
33. Rubber pipe assembly
34. Rubber pipe assembly
35. Rubber pipe assembly
