U35

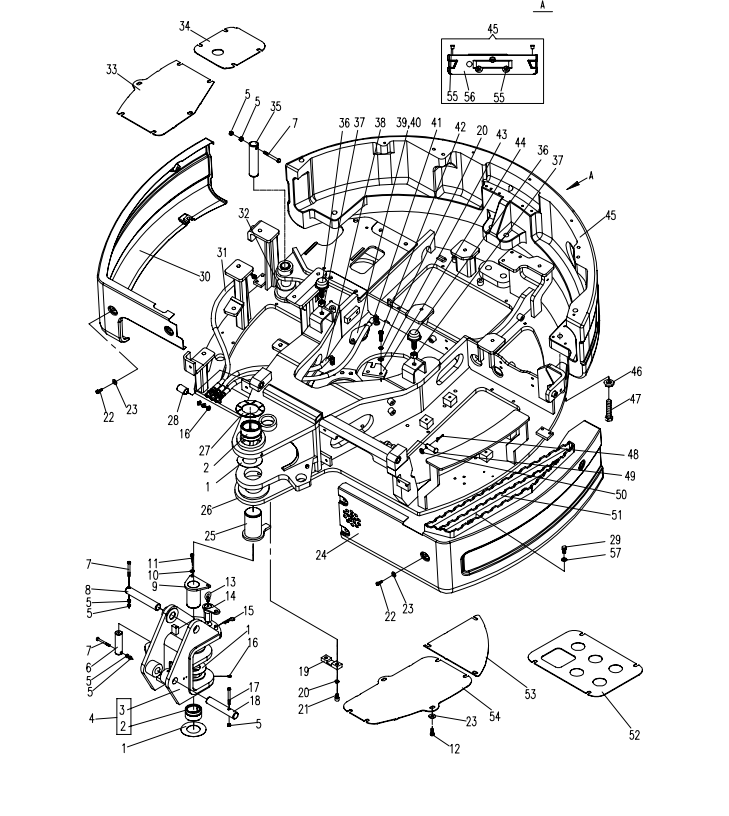

Yuchai U35
1. T0804-020002 Washer
2. U35C4-0200001 Bush
3. 835-0201000A Steering head
4. 835-0250000A Steering head assembly
5. 0306-100-45 Nut
6. 835-0200013A Shaft Pin
7. 0204-001000090-84 Bolt
8. 820-0200001A Shaft pin
9. 835-0204000A Shaft pin
10. 0404-010-05 Washer
11. 0105-001000030-84 Bolt
12. 0206-001000030-84 Bolt
13. 0114-001000020-65 Flying Rings bolt
14. 835-0205000A Shaft Pin
15. 801-0500039 Stretch pin
16. 0701-101-03 Shaft Pin
17. 0204-001000100-84 Bolt
18. 835-0200001A Shaft pin
19. 835-0200007A Locking plat
20. 0414-012-05 Spring washer
21. 0105-001200035-65 Bolt
22. 0206-001000035-84 Blot
23. 0403-010-05 Biger washer
24. 835A-0200030 Left cover-board assembly
25. 835-0208000A Shaft pin
26. E35B1-0202000B Platform
27. T0804-022002 Washer
28. 835-0200006B Bush
29. 0106-000800016-65 Blot
30. 835A-0200040 Right cover plate assembly
31. 820-0205000 Oil-pipe
32. T0804-01003 Washer
33. E35B1-0200002 Front-right cover plate
34. 835-0200012A Rear-right cover plate
35. 828-0400006 Shaft pin
36. 835-0206000A Adjustable cushion
37. 0306-200-65 Nut
38. 820-0207000 Connecting pipeⅡ
39. 870-0200012 Cushion glue
40. 870P-0200012 Cover plate
41. 835-0209000A Connecting pipe assembly
42. 0206-001200025-84 Blot
43. 0404-012-05 Washer
44. 835-0200014A Locking-plate
45. 835A-0211000 Counter weight assembly
46. T0804-022009 Washer
47. 0206-002000085-84 Blot
48. 0501-040040-05 Cotter pin
49. 835A-0200016 Turn pin
50. 0404-020-05 Washer
51. U35C4-0200040 Abrasive paper
52. E35B1-0200003 Middle cover plate
53. 835-0200018A Rear-left cover plate
54. E35B1-0200001 Front-left cover plate
55. 860K-0200004 Rubber cap
56. 835-0211001 Counter weight
57. 0404-008-05 Washer
