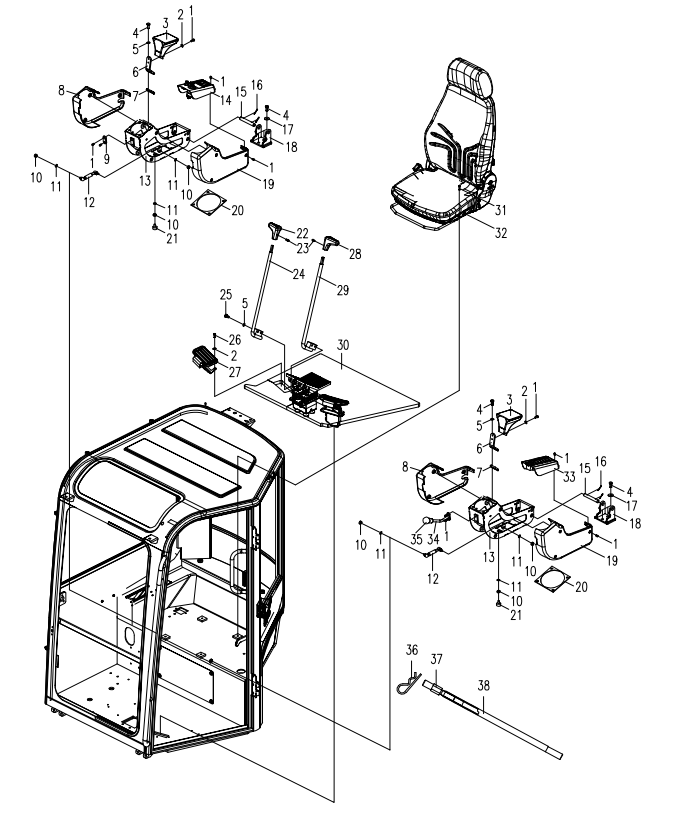

U35
Yuchai U35
1. 0110-000600012-65 Bolt
2. 0403-006-05 Washer
3. E22A1-0627110 Armrest
4. 0206-001000030-84 Bolt
5. 0404-010-05 Washer
6. E35B1-0602101 Bracket
7. E22A1-0627001 Bracket plate
8. 810S-0602301 Right box cover I
9. 816-0606001 Fixsd plate
10. 0306-080-45 Nut
11. 0401-008-05 Washer
12. 810A-1503000 Gas spring
13. 810S-0604500C Left Frame
14. 810S-0602303 Right uper cover
15. E35B1-0601001 Pin shaft
16. 0501-025024-05 Pin
17. 0403-010-05 Washer
18. E35B1-0601020 Bracket
19. 810S-0602302 Right box cover II
20. 860-0600004 Press plate
21. 818B-0608000 Rubber cap
22. 870P-0600103 Right handle
23. 0105-000500008-65 Bolt
24. 870P-0600120 Right walking bar
25. 0206-001000035-65 Bolt
26. 0206-000600012-65 Bolt
27. E18B1-8500720 Pedal
28. 870P-0600104 Left hand handle
29. 870P-0600130 Left walking bar
30. E35B1-0600001A Floor glue
31. 0105-000800016-65 Bolt
32. E35B1-0600002 Seat assembly
33. 810S-0604801 Left upper cover
34. 810S-0604100 Pull rod
35. T0805-020001 Hand handle
36. 801-0500039 Pin
37. 835-0616002 Screw
38. 835-0616001 Protection rod
