U35

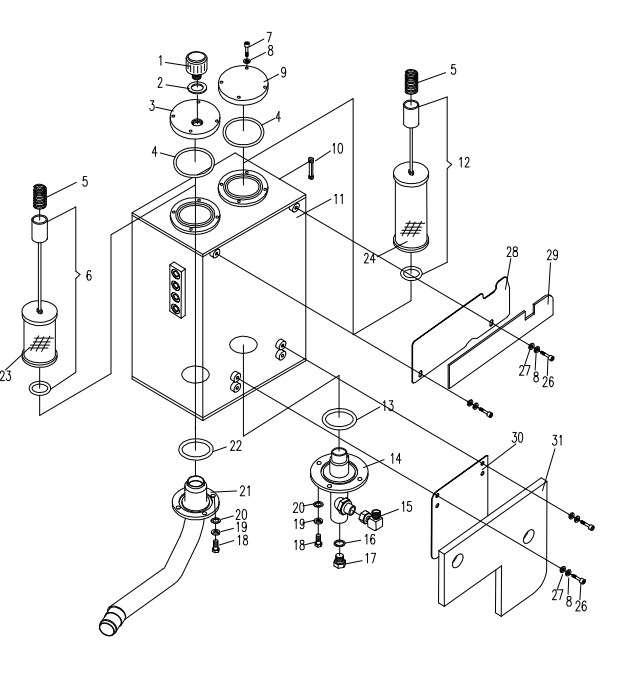

Yuchai U35
1. 835-0501400 Air cleaner assembly
2. 0416-027-00 Combinatory washer
3. 835-0501300 Flange cover assembly
4. 0602-013200265-30 “O”seal ring
5. 820-0502002 Spring washer
6. 835-0501900 Oil -intake filter assembly
7. 0105-000800016-65 Bolt
8. 0401-008-03 Spring washer
9. 835-0501200 Flange cover assembly
10. 835-0501001A Level gauge
11. E35B1-0505100 Oil tank body
12. 835-0501800 Oil -return filter assembly
13. 0602-006000530-30 “O”seal ring
14. 835-0501700 Oil -return flange assembly
15. 830D-0500028 Pipe Joint
16. 0416-018-00 Combinatory washer
17. 820-0502001 Screw Plug
18. 0206-001000025-65 Bolt
19. 0401-010-03 Spring washer
20. 0404-010-03 Washer
21. 835-0501500A Oil -intake flange assembly
22. 0602-007500530-30 “O”seal ring
23. 835-0501910 Oil -intake filter
24. 835-0501810 Oil -return filter
25. T0801-020059 Nut block
26. 0206-000800016-65 Bolt
27. 0404-008-05 washer
28. E35B1-0500901 clapboard
29. E35B1-0500902 sponge
30. E35B1-0500801 clapboard
31. E35B1-0500802 sponge
