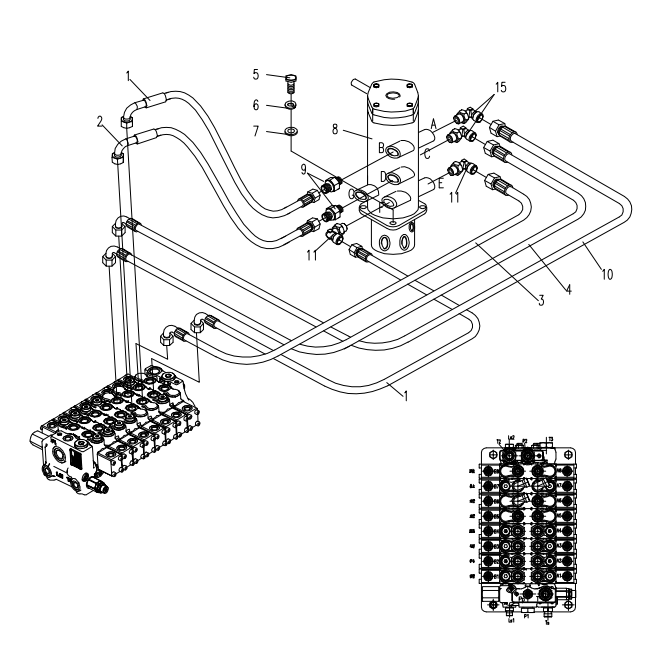

U35
Yuchai U35
1. 830E-0509000 Rubber pipe assembly
2. 240-9596000 Rubber pipe assembly
3. 830E-0506000 Rubber pipe assembly
4. 830D-0512000 Rubber pipe assembly
5. 0206-001000020-65 Blot
6. 0404-010-05 Washer
7. 0401-010-05 Spring washer
8. 820-0528000 Centre slewing jiont
9. 810N-9500001A Bolt joint
10. 830B-0512000 Rubber pipe assembly
11. 801-0500007 Square joint
