U35

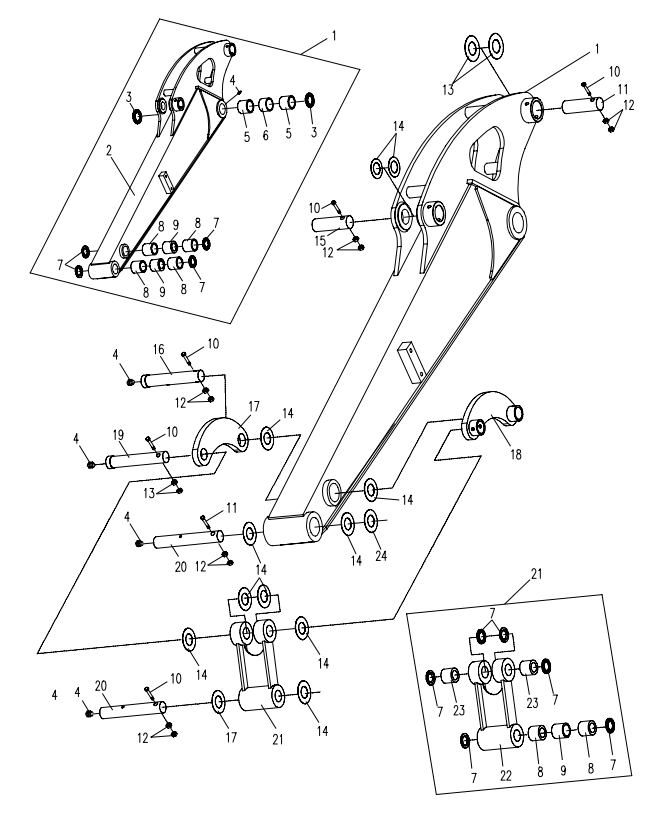

Yuchai U35
1. 835-0402000B Arm
2. 835-0402100C Arm body
3. 820-0401005 Dust-proof seal
4. 0701-101-03 Grease cup
5. 820-0401004A Copper bush
6. 820-0402005A Middle bush II
7. 820-0402006 Dust-proof seal
8. 830U01-0402001 Steel bush
9. 820-0402004 Middle bush I
10. 0204-001000090-84 Bolt
11. 835-0400001 Shaft pin
12. 0306-100-45 Nut
13. T0804-01004 Spacer washer
14. T0804-01003 Spacer washer
15. 820-0400007A Shaft pin
16. 835-0400003 Shaft pin
17. 835-0407001 Right linkage
18. 835-0405000 Left linkage
19. 835-0400002 Shaft pin
20. 820-0400001B Shaft pin
21. 835-0404000 Connecting
22. 835-0404100 Connecting body
23. 830U01-0404001 Steel bush
24. 820-0400015 Spacer washer
