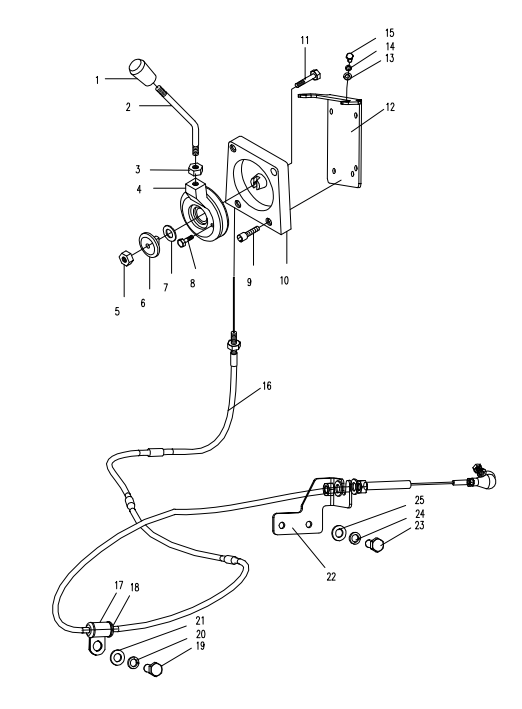

U35
Yuchai U35
1. 801-1206200 Handle head
2. 853K-2813002 Throttle lever
3. 0306-080-45 Nut
4. 830-1206203 Idler pulley
5. 0306-060-45 Nut
6. 801-1206005 Press plate
7. 0413-012-01 Spring washer
8. 0206-000500012-65 Bolt
9. 0105-000600025-65 Hexagon cylindrical screw
10. 830-1206202 Connecting plate
11. 0206-000600030-65 Bolt
12. 835B-1203010 Throttle mounting plate
13. 0404-004-05 Washer
14. 0401-004-05 Spring washer
15. 0206-000400016-65 Bolt
16. 852A-1206200A Pull line assembly
17. 858B-1200002 Pipe clamp
18. 839B-1203002 Rubber sleeve
19. 0206-001000016-65 Bolt
20. 0401-010-05 Spring washer
21. 0404-010-05 Washer
22. 835B-1203001 Bracket
23. 0206-000800016-65 Bolt
24. 0401-008-05 Spring washer
25. 0404-008-05 Washer
